Vroom Rack™ for Cargo Trailers
Model #RACK6R-TRLR - Finally! An adjustable cargo trailer rack designed, USA-built, and tested specifically for roof-top solar panel mounting... with no roof-penetration required.
Designed for Solar Panel Mounting – Built for commercial-grade solar modules and adaptable to panels up to 45” wide. Vroom Solar recommends high-quality, heavy- duty, USA-built Crossroads Solar modules; engineered for highway usage with a 10-year warranty. Our patent-pending rack design has been fully wind-tested with Crossroads Solar heavy-duty solar modules for high-speed mobile applications and is stronger than other rack options because of its 3-rail design.
Adjustable Height and Width – Rack adjusts to attach to the support infrastructure on the sides of the trailer, so no holes in your trailer roof. Fits trailer widths from 84” to 102”; (3) mounting height options available, so solar modules can be mounted 2-5” above the trailer roof to mitigate heat build-up and facilitate maximum solar energy capture from bi-facial solar panels.
Easier, Faster Installation – Our adaptable, adjustable racking solution is designed to install easily into the side support frames of most existing cargo trailer types in under two hours; no roof penetration required.
UL 2703 Grounding Certification – Rack is UL 2703 compliant pending full UL certification; grounding & bonding requirements are included in this certification.
Testing - The Vroom Rack™ for Cargo Trailers has been field-tested and approved for durability under normal operating conditions consistent with proper installation as described in the Owner’s Manual.
All Vroom Solar Racks™ include a 24-month parts and product warranty.
Model #RACK6R-TRLR - Finally! An adjustable cargo trailer rack designed, USA-built, and tested specifically for roof-top solar panel mounting... with no roof-penetration required.
Designed for Solar Panel Mounting – Built for commercial-grade solar modules and adaptable to panels up to 45” wide. Vroom Solar recommends high-quality, heavy- duty, USA-built Crossroads Solar modules; engineered for highway usage with a 10-year warranty. Our patent-pending rack design has been fully wind-tested with Crossroads Solar heavy-duty solar modules for high-speed mobile applications and is stronger than other rack options because of its 3-rail design.
Adjustable Height and Width – Rack adjusts to attach to the support infrastructure on the sides of the trailer, so no holes in your trailer roof. Fits trailer widths from 84” to 102”; (3) mounting height options available, so solar modules can be mounted 2-5” above the trailer roof to mitigate heat build-up and facilitate maximum solar energy capture from bi-facial solar panels.
Easier, Faster Installation – Our adaptable, adjustable racking solution is designed to install easily into the side support frames of most existing cargo trailer types in under two hours; no roof penetration required.
UL 2703 Grounding Certification – Rack is UL 2703 compliant pending full UL certification; grounding & bonding requirements are included in this certification.
Testing - The Vroom Rack™ for Cargo Trailers has been field-tested and approved for durability under normal operating conditions consistent with proper installation as described in the Owner’s Manual.
All Vroom Solar Racks™ include a 24-month parts and product warranty.
Applications
Box trucks, cargo trailers, sheds and shipping containers are ideal applications. Whether you need to charge your power tools on a job site, power your repurposed shipping container office or tiny home, or provide a quick power source to disaster areas and underserved communities, Vroom Solar provides power on the go!
What’s in the box?
Box 1 of 2 | Rails | 6” x 4” x 96”, approx. weight = 50 lbs
(1) Vroom Solar Rack™ for Cargo Trailers with (2) 3-rail racks (6 total rails, 94” each) built for commercial-grade solar modules and featuring up to 90” of available solar panel space on the rails. Adaptable to panels up to 45” wide, and 30-40mm thickness. Fits trailer widths from 84” to 102” (mounts up to (4) total solar modules on (6) rails depending on panel width).
Vroom Rack™ rail parts are made of 3003 or equivalent aluminum.
Solar Panels and Connecting Cables are NOT INCLUDED.
SKU | 000105
Box 2 of 2 | Hardware | 12” x 12” x 6”, approx. weight = 20 lbs
Complete rack mounting hardware, enough to mount up to (4) total solar modules ((4) sealed hardware bags)
(18) mid-clamps and (12) end-clamp height-adjustment legs (Advanced Clamp Leg)

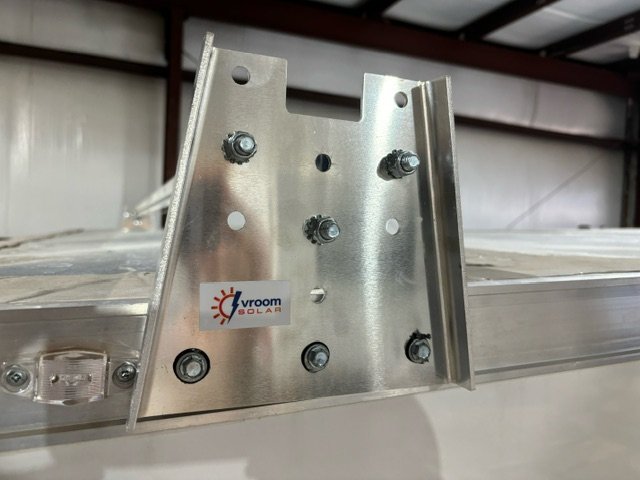

(12) Mounting Triangles | (12) Channel Brackets
(12) ¼” spacers
⅜” Carriage bolts, Star Washers, and NyLock Nuts – Qty. (36) each, (3) bags
(24) 20mm SHORT T-Bolts w/rectangular head and Serrated Flange nut, (3) bags of (8) each
(36) ¼” x 1 ½” hex-head self-tapping screws, (4) bags of (10) | Butyl Sealing Tape
Hardware package includes card w/QR Code for Owner’s Manual/Installation video
Vroom Rack™ mounting parts are made of powder-coated 3003 or equivalent aluminum
SKU | 000106
Product ships in 1-2 weeks, beginning JUNE, 2024.
Requires full credit card prepayment of product(s) cost, applicable shipping cost, and applicable taxes.
Contact Us (info@vroomsolar.com) if paying by ACH or check, or if you require any additional information.
Vroom Solar reserves the right to add shipping surcharges if applicable.
