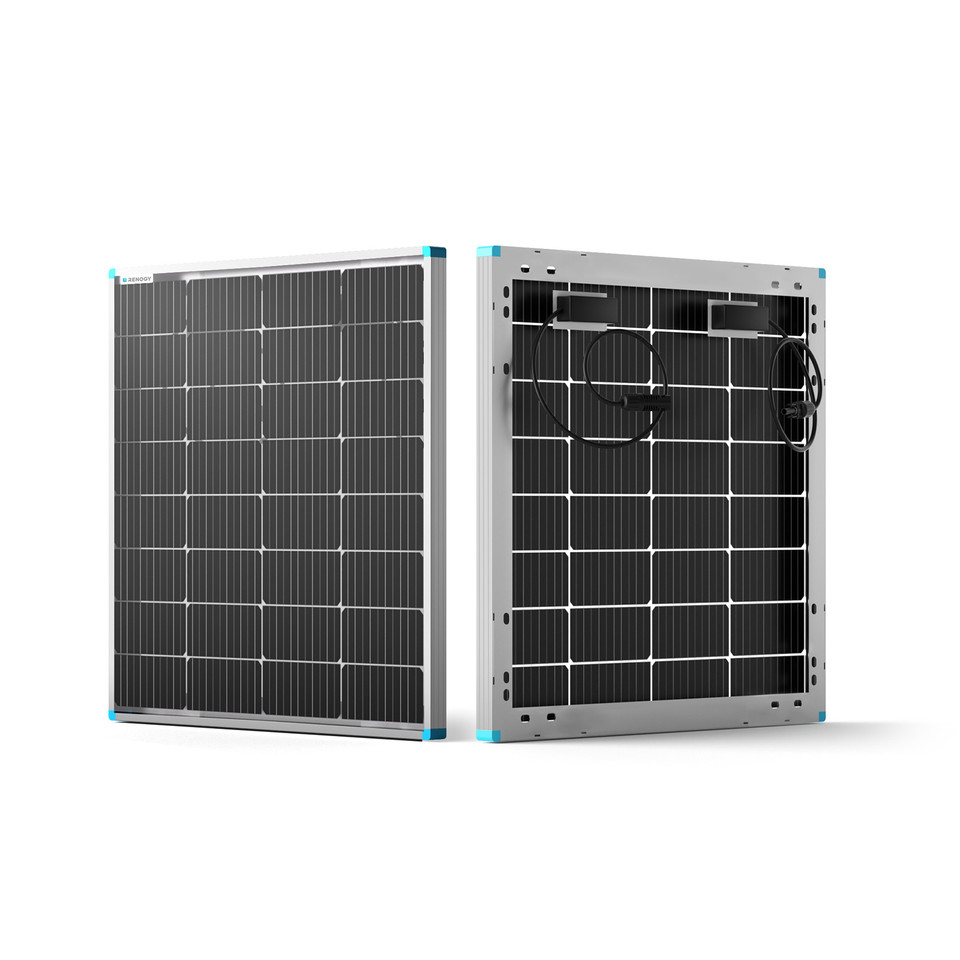

115-watt Bi-Facial Rigid Solar Panel for RVs
SKU: RSP115DT-G1-US | Manufactured by Renogy; Vroom Solar is an Authorized Dealer for Renogy. Built with Grade A+ Mono Si cells. Modules are protected by multipule bypass diodes and coated with advanced encapsulation material. High module conversion efficiency. 100% UL testing. No hot spots guaranteed.
Bi-Facial panel - Offers the ability to capture sunlight from both side , which allows the panel to provide up to 30% more energy compared to monofacial rigid solar panels.
Certifications – UL61730 / IEC61215 / IEC67130
Renogy Solar Panels include a 25-Year Output Warranty, and a 10-Year Material and Workmanship Warranty.
SKU: RSP115DT-G1-US | Manufactured by Renogy; Vroom Solar is an Authorized Dealer for Renogy. Built with Grade A+ Mono Si cells. Modules are protected by multipule bypass diodes and coated with advanced encapsulation material. High module conversion efficiency. 100% UL testing. No hot spots guaranteed.
Bi-Facial panel - Offers the ability to capture sunlight from both side , which allows the panel to provide up to 30% more energy compared to monofacial rigid solar panels.
Certifications – UL61730 / IEC61215 / IEC67130
Renogy Solar Panels include a 25-Year Output Warranty, and a 10-Year Material and Workmanship Warranty.
Applications: This Renogy Solar Panel is ideal for RV roof applications. Pair with the Vroom Rack™ for RVs for the best possible solar solution. With Vroom Rack™ for RVs: NO middle-roof penetration, and the elevated mount allows for heat dissipation and bi-facial panels for maximum solar panel power output.. Vroom Solar provides more power on the go!
Many RV solar panel installations (right, below) feature middle-of-roof penetration and a direct attachment to the RV roof, causing instability, roof leaks, and heat build-up issues. This type of installation also prevents maximum solar input from bi-facial panels. Don’t make this mistake!
What’s in the box?
(1) 115-watt Renogy solar module(s)
Short Positive and Negative cable leads from each panel
How many solar panels do I need?
What voltage is your RV battery pack? Example: 14.4 V (Effectively, a 12-volt system)
What is the available square footage for solar panels on your RV roof? Example: 24 sq. ft. (a space 3’ long x 8’ wide)
What is the amperage of your RV solar control unit? Example: 40A
So, in this example, needed wattage is: 12 (volts) x 40 (amps) = 480 watts
This wattage could be obtained by (4) 115-watt solar panels or (2) 220-watt panels. But your available square footage is only enough to accommodate (3) solar panels that are 30” wide, so you should order (2) Renogy 220-watt bi-facial panels to get the most compatible, total wattage from the available space.
Specifications
Optimum Operating Voltage: 18.8V
Optimum Operating Current: 5.86A
Open-Circuit Voltage: 21.9V
Short.circuit current: 6.42A
Dimensions: 786 × 763 x 30 mm | 30.9 x 30.0 x 1.2 in
Weight: 6.9 kg / 15.2 lbs
Enclosure Rating: IP67
Operating Temperature: 40 C to 85 C | -40 F to 185 F
Certifications: UL61730 /IEC61215 /IEC67130
Ordering Information
Price valid for U.S. lower 48 states shipping only. Call for pricing outside of U.S. lower 48 states.
Product ships in 1-2 weeks, beginning May 1, 2024.
Requires full credit card prepayment of product(s) cost, applicable shipping cost, and applicable taxes.
Contact Sales (info@vroomsolar.com) if paying by ACH or check, or if you require any additional information.
Vroom Solar reserves the right to add shipping surcharges if applicable.
